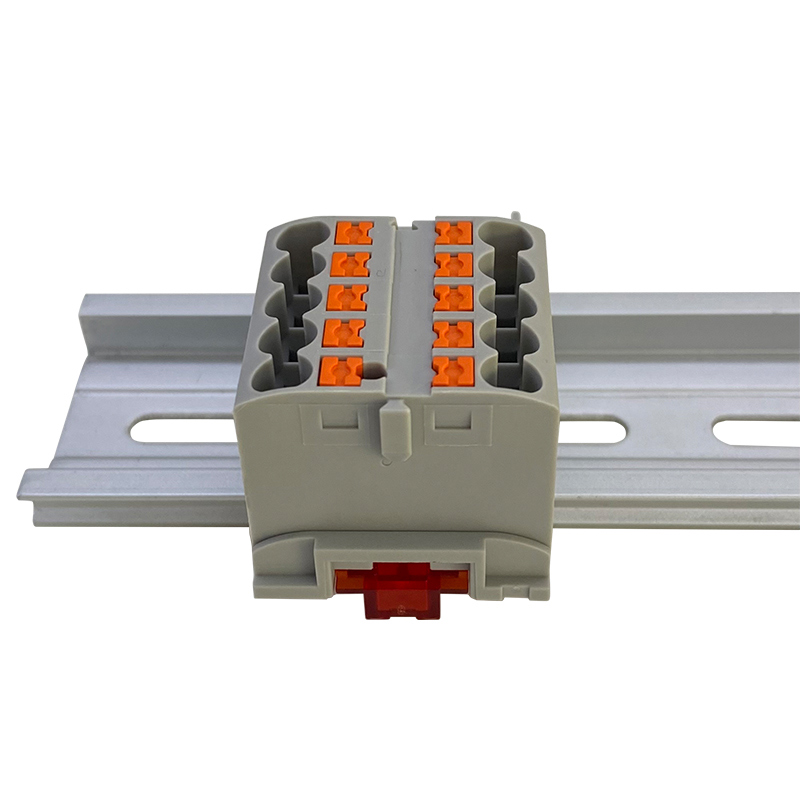

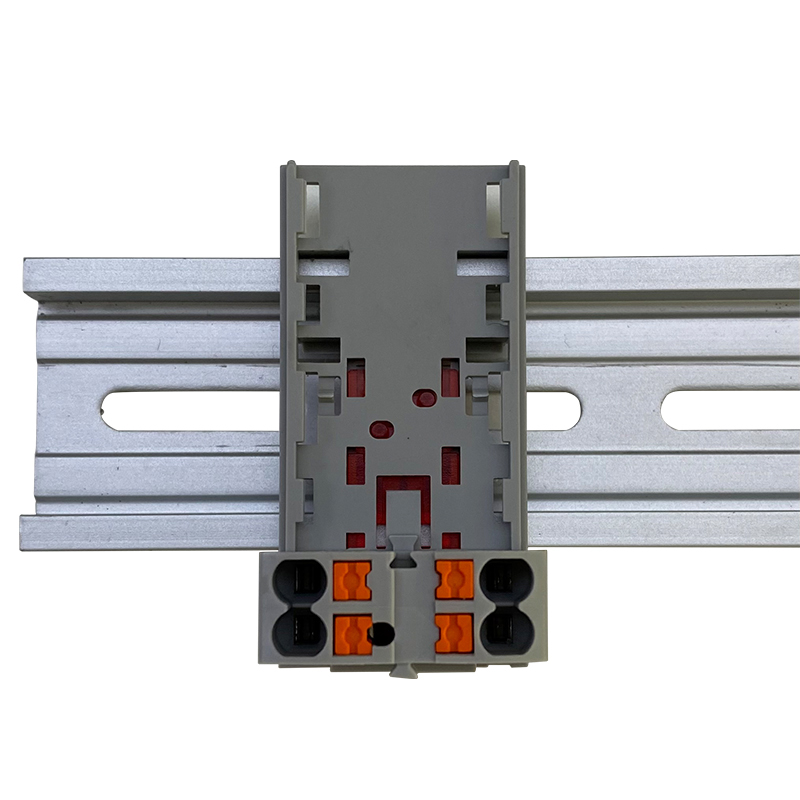

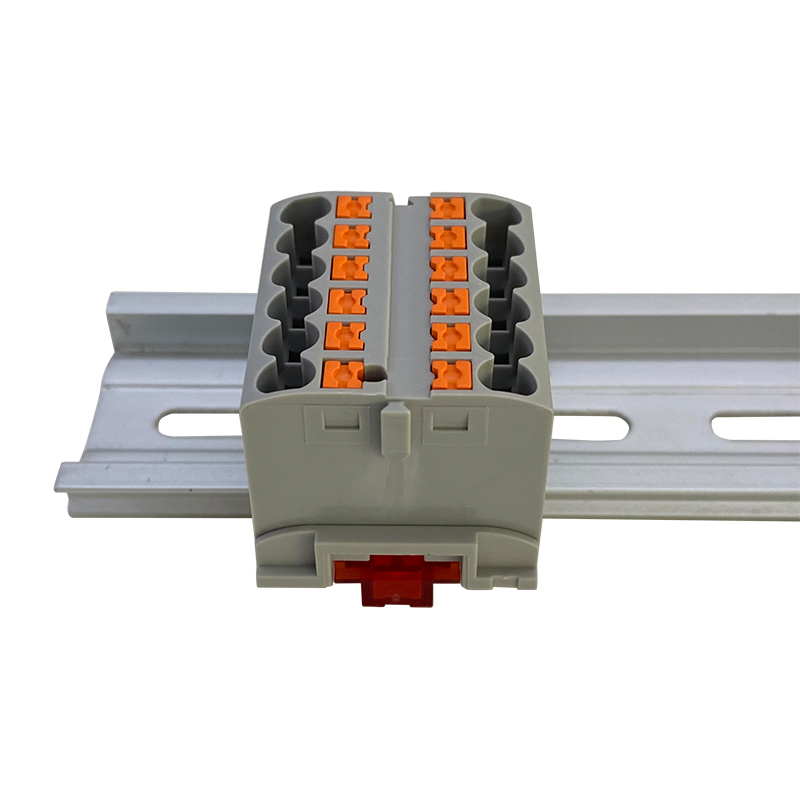

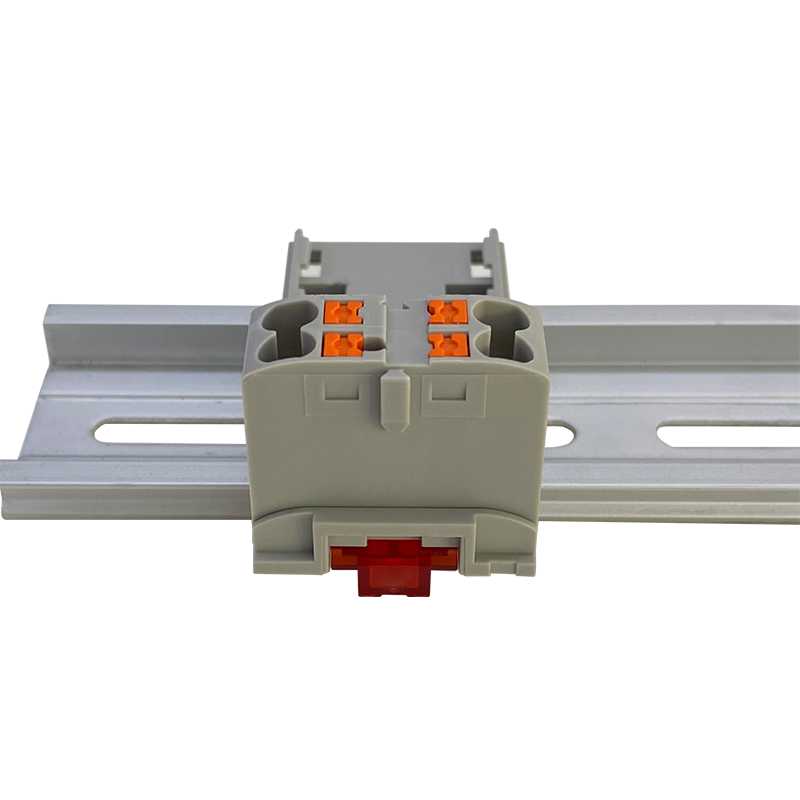

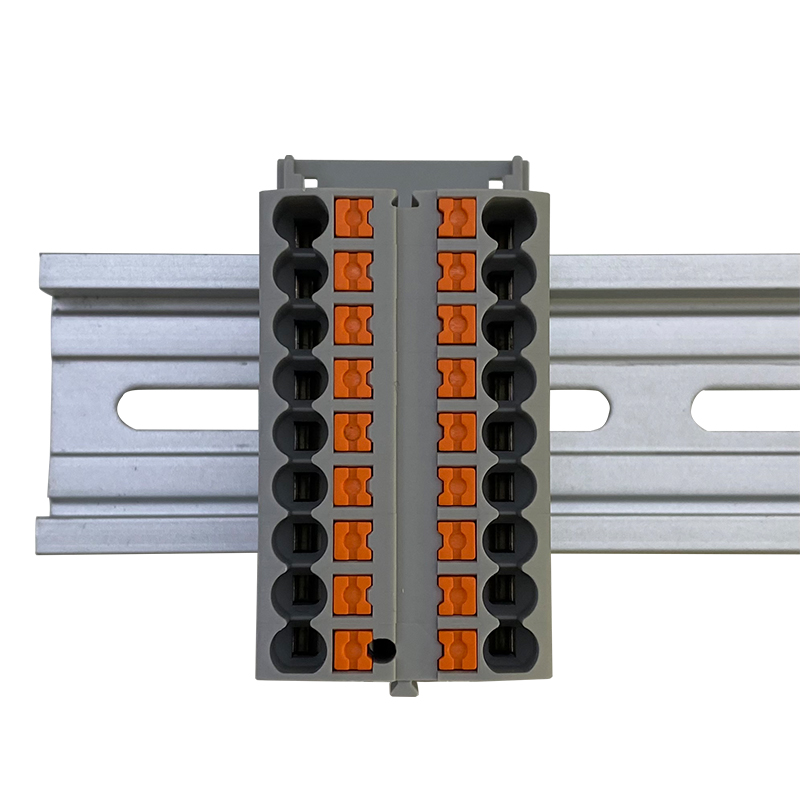

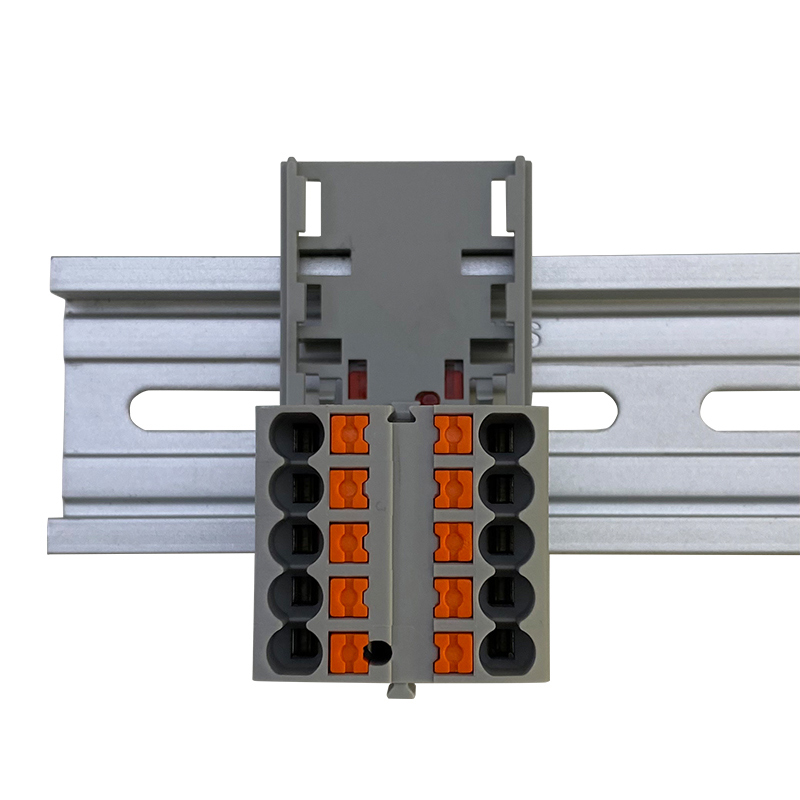

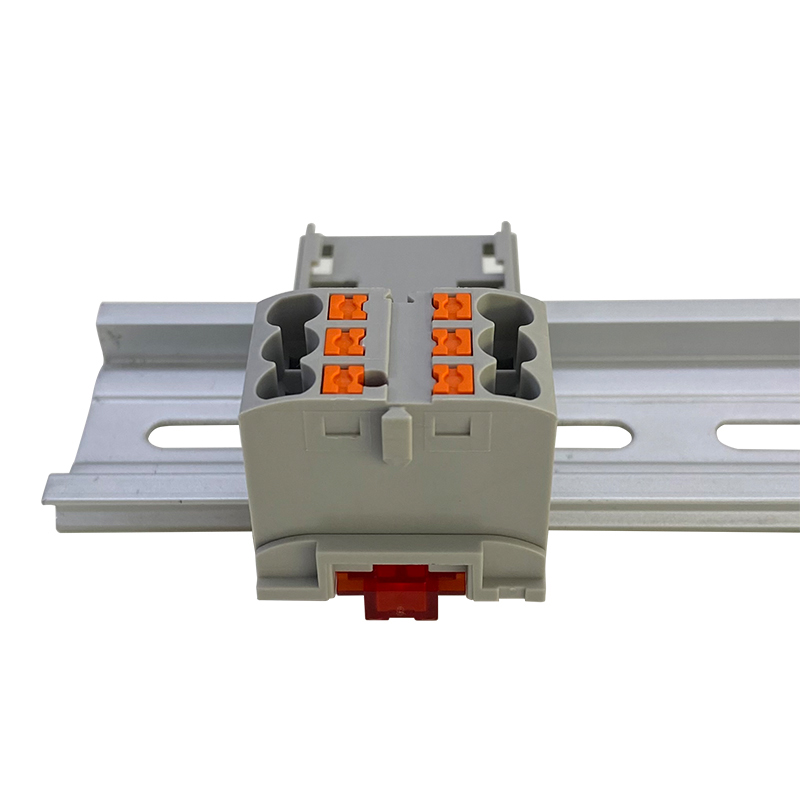

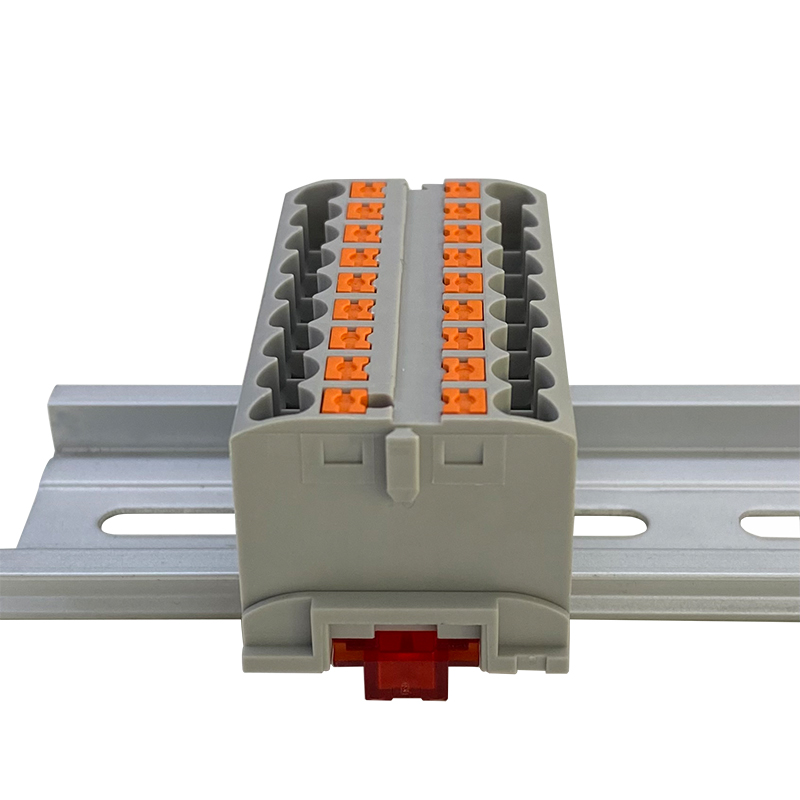

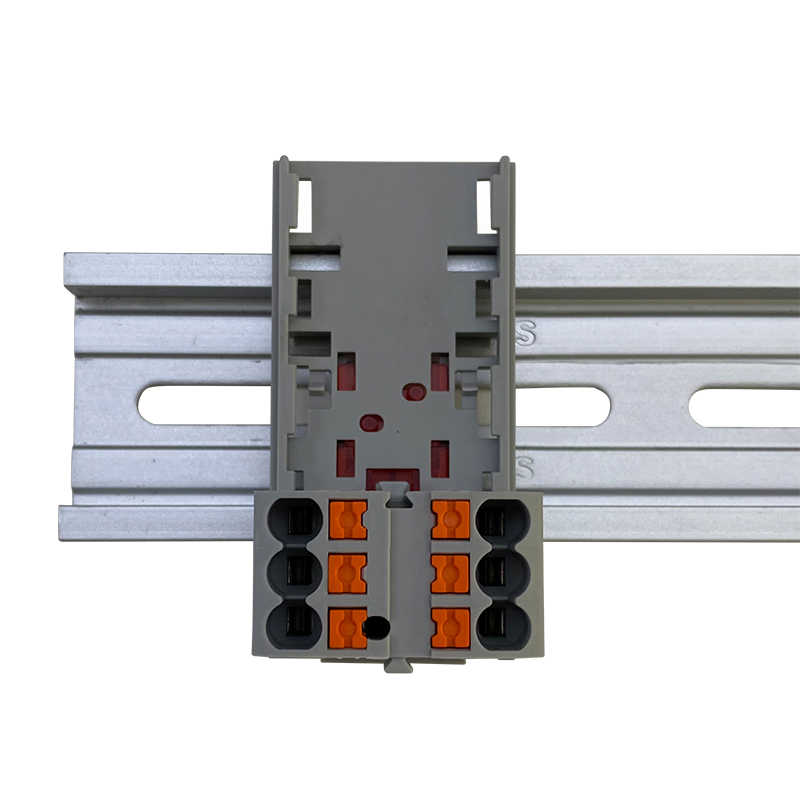

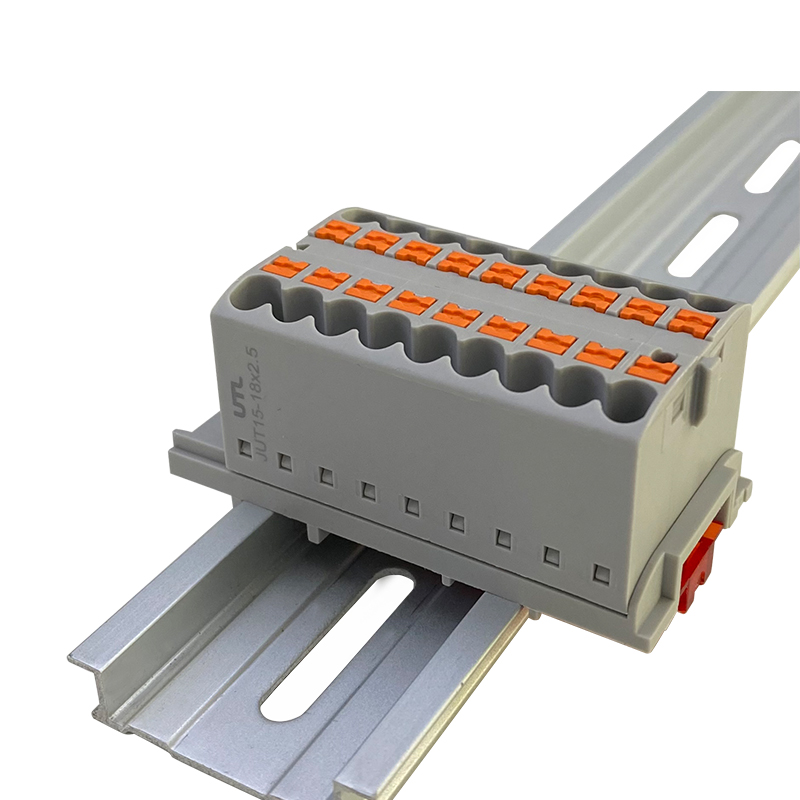

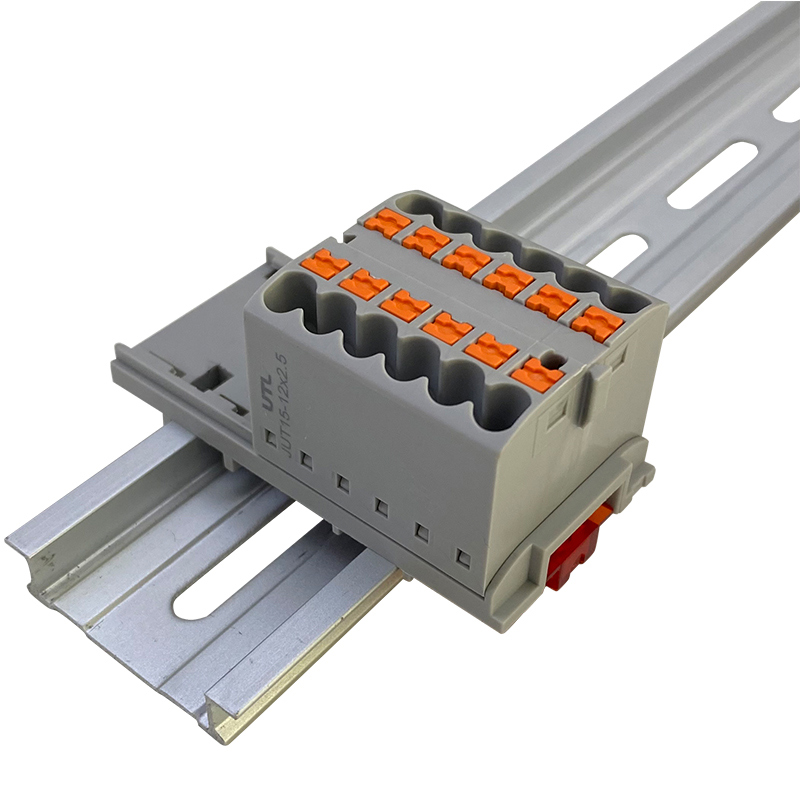

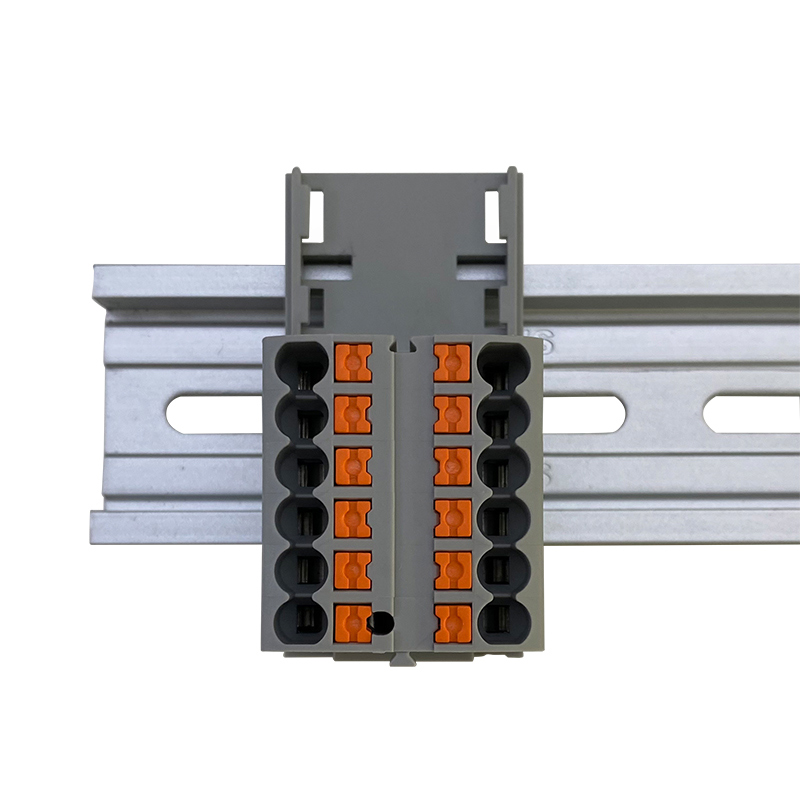

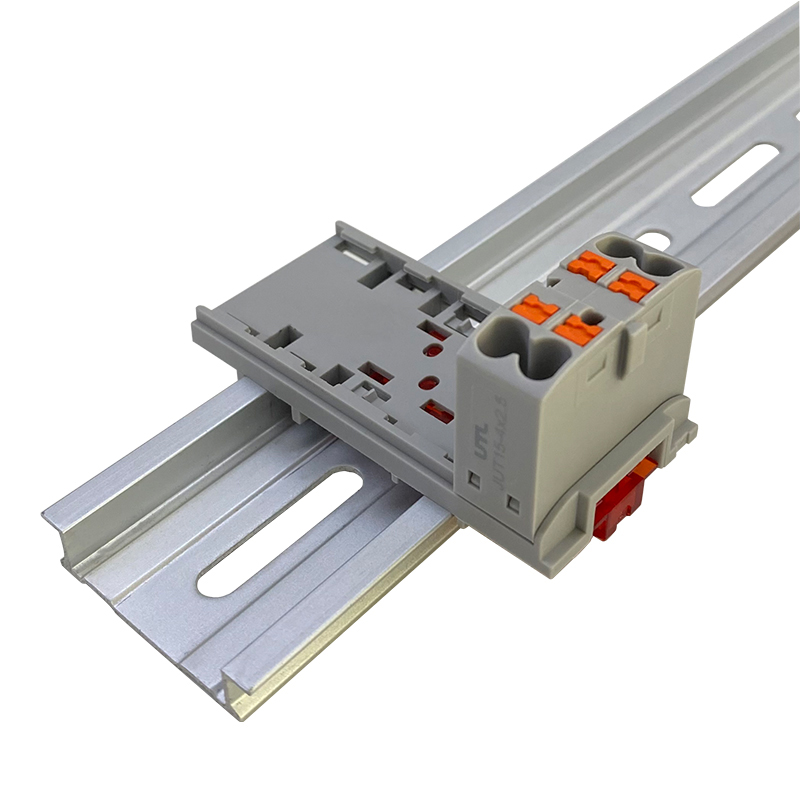

JUT15-2.5P series (PTFIX Terminal Block Power Supply Plug-in Din Rail Terminal Blocks)

Short Description:

For power distribution blocks, the terminal blocks can be bridged with each other using conductor shafts, the corresponding plug-in bridges can be found in the accessories at the bottom.

Working current: 24 A, Operating Voltage: 690 V.

Wiring method: Push-in spring connection.

Rated wiring capacity: 2.5mm².

Installation method: NS 35/7.5, NS 35/15.

Send email to us

Technical Data

Business Data

Download

Certification

Product Tags

JUT15-2.5P Series Advantages

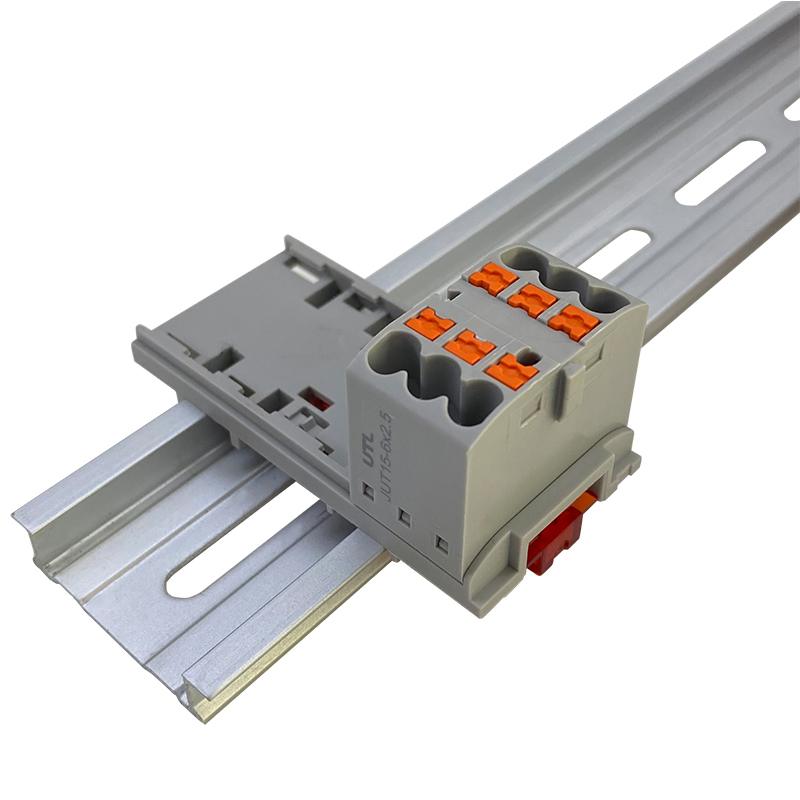

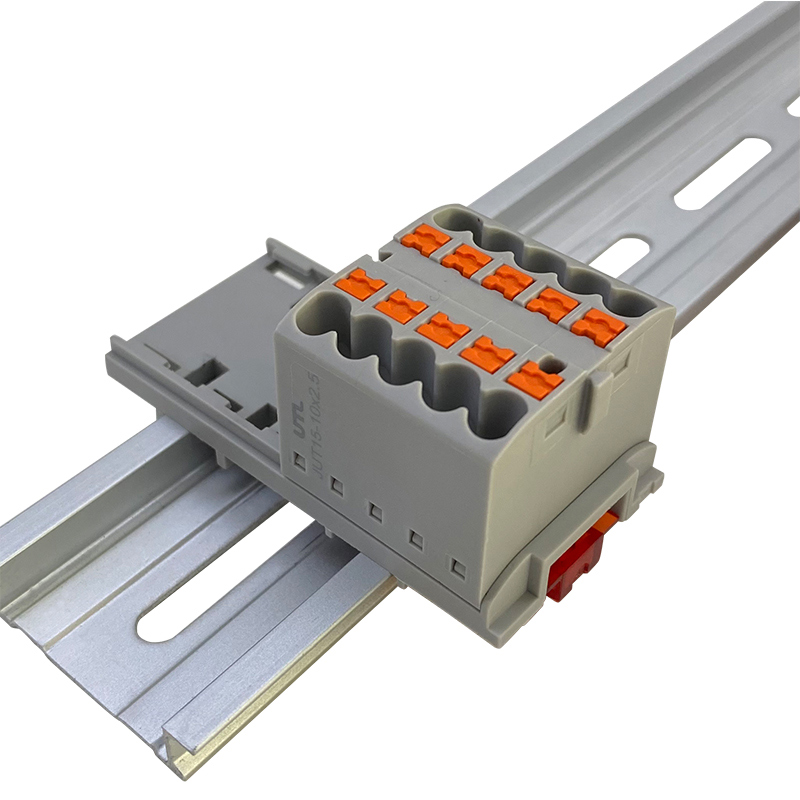

Can be installed vertically or parallel to DIN rail, saving up to 50% of rail space.

It can be installed by DIN rail, direct installation or adhesive installation, which is more flexible to use.

Time-saving wire connection thanks to tool-free push-in connection technology.

Modules can be installed immediately without manual bridging, saving up to 80% of time.

Different colors, the wiring is more clear.

JUT15-2.5P Series Description

Product number	JUT15-4x2.5-P	JUT15-6x2.5-P	JUT15-10x2.5-P	JUT15-12x2.5-P	JUT15-18x2.5-P
Product type	Rail wiring distribution block
Mechanical structure	Push-in spring connection
layers	1	1	1	1	1
Electric Potential	1	1	1	1	1
connection volume	4	6	10	12	18
Rated cross section	2.5 mm²	2.5 mm²	2.5mm²	2.5mm²	2.5mm²
Rated current	24A	24A	24A	24A	24A
Rated voltage	690V	690V	690V	690V	690V
open side panel	no	no	no	no	no
grounding feet	no	no	no	no	no
other	The connecting rail needs to install the rail seat PAD-NS15/35	The connecting rail needs to install the rail seat PAD-NS15/35	The connecting rail needs to install the rail seat PAD-NS15/35	The connecting rail needs to install the rail seat PAD-NS15/35	The connecting rail needs to install the rail seat PAD-NS15/35
Application field	It is generally used for related supporting facilities such as electric connection industries and industries.
color	Gray, dark gray, green, yellow, cream, orange, black, red, blue, white, purple, brown, customisable

Wiring Data

wire contact
Stripping length	8mm — 10mm	8mm — 10mm	8mm — 10mm	8mm — 10mm	8mm — 10mm
Rigid Conductor Cross Section	0.14mm² — 4mm²	0.14mm² — 4mm²	0.14mm² — 4mm²	0.14mm²— 4mm²	0.14mm² — 4mm²
Flexible conductor cross section	0.14mm² — 2.5mm²	0.14mm² — 2.5mm²	0.14mm² — 2.5mm²	0.14mm²— 2.5mm²	0.14mm² — 2.5mm²
Rigid Conductor Cross Section AWG	26-12	26-12	26-12	26-12	26-12
Flexible Conductor Cross Section AWG	26-14	26-14	26-14	26-14	26-14

Size(This is the size of the JUT15P carrying rail holder PAD-NS15/35 installed on the rail)

thickness	28.8mm	28.8mm	28.8mm	28.8mm	28.8mm
width	58.5mm	58.5mm	58.5mm	58.5mm	58.5mm
high	21.7mm	21.7mm	21.7mm	21.7mm	21.7mm
NS35/7.5 high	32.5mm	32.5mm	32.5mm	32.5mm	32.5mm
NS35/15 high	40mm	40mm	40mm	40mm	40mm
NS15/5.5 high	30.5mm	30.5mm	30.5mm	30.5mm	30.5mm

Material Properties

Flame retardant grade,comply with UL94	V0	V0	V0	V0	V0
Insulation Materials	PA	PA	PA	PA	PA
Insulation material group	I	I	I	I	I

IEC Electrical Parameters

standard test	IEC 60947-7-1	IEC 60947-7-1	IEC 60947-7-1	IEC 60947-7-1	IEC 60947-7-1
Rated voltage（III/3）	690V	690V	690V	690V	690V
Rated current（III/3）	24A	24A	24A	24A	24A
Rated surge voltage	8kv	8kv	8kv	8kv	8kv
Overvoltage class	III	III	III	III	III
pollution level	3	3	3	3	3

Electrical Performance Test

Surge Voltage Test Results	Passed the test	Passed the test	Passed the test	Passed the test	Passed the test
Power frequency withstand voltage test results	Passed the test	Passed the test	Passed the test	Passed the test	Passed the test
Temperature rise test results	Passed the test	Passed the test	Passed the test	Passed the test	Passed the test

Environmental Conditions

Ambient temperature (operating)	-60 °C — 105 °C (Maximum short-term operating temperature, electrical characteristics relative temperature.)
Ambient temperature (storage/transport)	-25 °C — 60 °C short term (up to 24 hours), -60 °C to +70 °C	-25 °C — 60 °C short term (up to 24 hours), -60 °C to +70 °C	-25 °C — 60 °C short term (up to 24 hours), -60 °C to +70 °C	-25 °C — 60 °C short term (up to 24 hours), -60 °C to +70 °C	-25 °C — 60 °C short term (up to 24 hours), -60 °C to +70 °C
Ambient temperature (assembled)	-5 °C — 70 °C	-5 °C — 70 °C	-5 °C — 70 °C	-5 °C — 70 °C	-5 °C — 70 °C
Ambient temperature (execution)	-5 °C — 70 °C	-5 °C — 70 °C	-5 °C — 70 °C	-5 °C — 70 °C	-5 °C — 70 °C
Relative Humidity (Storage/Transportation)	30 % — 70 %	30 % — 70 %	30 % — 70 %	30 % — 70 %	30 % — 70 %
