UUT-4/2-2 4mm Two in Tow Out feed through screw connector terminal

Short Description:

The screw-type industrial terminal block has strong static connection stability, high versatility, and can be quickly installed on U-shaped guide rails and G-shaped guide rails. Abundant and practical accessories. Traditional and reliable.

Working current: 32A，Operating Voltage：500 V

AWG:24-10

Wiring method: screw connection.

Rated wiring capacity: 4 mm2

Installation method: NS 35/7.5，NS 35/15, NS32.


Technical Data

Product Tags

Advantage
UTL's first 1000v full range Product characteristics
•  1000V
•  Good workmanship
•  Stable performance
•  Easy to install
•  Segment test terminal latest structure
•  Rich accessories to meet the needs of different occasions

PRODUCT DETAIL DATA

Product properties UUT-4--GY UUT-4PE UUT-4/2-2--GY

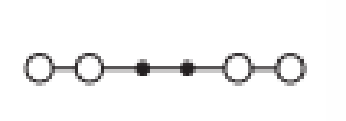

Wiring Diagram  a  b  c
Product Classification Straight-through terminal block Terminal block Ground terminal Straight-through terminal block, Two-in Two-out
Product Type Screw Type Terminal Block Screw Type Terminal Block Screw Type Terminal Block
Product Series UUT UUT UUT
Connect Number 2 2 4
Industry Power Industry
Factory engineering
process control
Mechanical Engineering
Railway industry		 Power Industry
Factory engineering
process control
Mechanical Engineering
Railway industry		 Power Industry
Factory engineering
process control
Mechanical Engineering
Railway industry
Potential 1 1 1
Wiring data UUT-4--GY UUT-4PE UUT-4/2-2--GY
Strip Length 9 9 9
AWG 24  ~  10 24  ~  10 24  ~  10
Rigid conductor cross section  0.2 mm²  ~ 6 mm²  0.2 mm²  ~ 6 mm²  0.2 mm²  ~ 6 mm²
Flexible conductor cross section  0.2 mm²  ~ 6 mm²  0.2 mm²  ~ 6 mm²  0.2 mm²  ~ 6 mm²
Minimum wiring capacity of single wire 0.2 0.2 0.2
Maximum wiring capacity of single strand wire 6 6 6
Minimum wiring capacity of multi-strand wires 0.2 0.2 0.2
Maximum wiring capacity of multi-strand wires 6 6 6
Incoming line direction Side Cable Entry Side Cable Entry Side Cable Entry
Width(mm) 6.2 6.2 6.2
Height(mm) 47.7 47.7 65.4
Deep (mm) 46.9 46.9 46.9
NS 35/7.5 47.5 47.5 47.5
NS35/15 55 55 55
IEC parameters UUT-4--GY UUT-4PE UUT-4/2-2--GY
Rated impulse withstand voltage 8kV 8kV 6kV
Rated voltage 1000   500
Rated current 32   32
UL parameters UUT-4--GY UUT-4PE UUT-4/2-2--GY
Rated voltage
Rated current
Material specifications UUT-4--GY UUT-4PE UUT-4/2-2--GY
Color Grey Yellow & Green Grey
Flammability rating V0 V0 V0
Pollution level 3 3 3
Insulation material group I I I
Insulation Materials PA66 PA66 PA66
Standards and Norms UUT-4--GY UUT-4PE UUT-4/2-2--GY
Connections comply with standards IEC 60947-7-1
GB14048.7.1		 IEC 60947-7-2
GB14048.7.2		 IEC 60947-7-1
GB14048.7.1
